TATAMI MAT HILLSIDE HOUSING

TATAMI MAT HILLSIDE HOUSING, JAPAN 1985. GLEN HOWARD SMALL, ARCHITECT AND SHIZUO HARADA, ARCHITECT

THIS IS THE FIRST PUBLISHED SHOWING OF THIS PROJECT. I AM NOT AWARE OF OTHERS PROJECTS THAT ARE SIMILAR, BUT PLEASE INFORM ME IF YOU KNOW DIFFERENTLY.

IN 1983 I HAD AN INVITATION TO GO TO JAPAN AS THE GUEST OF SHIZUO HARADA ARCHITECT,  SPONSORED BY THE JAPANESE GOVERNMENT AND THE TAKENAKA CORPORATION. MR. HARADA CAME TO OUR HOUSE IN VENICE AND SEALED THE DEAI. I ACCEPTED AND FOUND MYSELF IN FIRST CLASS BOUND FOR JAPAN . THE WHOLE TRIP WAS FIRST CLASS, BEING PUT UP IN A HOTEL DESIGNED BY KENZO TANGE, CHAUFFEURED AROUND IN A BLACK POLISHED LIMOUSINE WITH DRIVER WEARING WHITE GLOVES. MY GIFT TO JAPAN WAS A LOT OF SEES CANDY BOXES, WHICH MR. HARADA CRAVED THAT HE SHARED WITH TO FAMILY AND FRIENDS.

ARCHITECT SHIZUO HARADA HAD AN OFFICE OF ABOUT EIGHT PEOPLE AND WAS A PROFESSOR AS WELL.

MY CONTRIBUTION BEING PLUS OR MINUS TEN LECTURES TO DIFFERENT AUDIENCES, MEETING WITH GOVERNMENT OFFICIALS AND AXIS MAGAZINE. AND PUTTERING WITH HARATA PROJECTS. I HAD NEVER RECEIVED SO MUCH MONEY FOR SO LITTLE, BUT THEY KNEW WHAT THEY WERE DOING. MY MIND WAS PUT ON DISPLAY, AND EVERYONE TOOK NOTES.

SHIZUO HARADA WAS ATTRACTED TO MY GREEN MACHINE PROJECT, THAT HAD BEEN PUBLISHED WORLD WIDE.

I SPENT A COUPLE OF WEEKS IN TOKOYO, AKASAKA, KYOTO, OSAKA , AND GOTEMBA, NEAR MOUNT FUJI, TRAVELING BY WAY OF BULLET TRAIN. GOING ON THE ELEVATED AT RUSH HOUR, THE PEOPLE’S HEAD’S CAME UP TO LITTLE OVER MY BELT LINE AND PUSHED LIKE A PACK OF SHEEP. MY HEIGHT OF 6′ 5″ MADE ME STAND OUT LIKE A FREAK.

MY HOSTS SHOWED ME ONE AFTERNOON A NEW HIGH DENSITY PLANNED HOUSING COMPLEX WHERE AN ARCHITECT LIVED. HIS WIFE WAS HOME ALONE WITH THE KIDS, THE JAPANESE MALE AT THAT TIME SPENT ALMOST ALL OF THEIR TIME AT THE OFFICE AND ENTERTAINING THEMSELVES WITH FELLOW WORKERS. SHE WAS EXTREMELY BEAUTIFUL AND PLEASANT. SHE VOLUNTEERED THAT SHE SPENT VERY LITTLE TIME WITH HER HUSBAND. MY RESPONSE BEING, IF YOU WERE MY WIFE I WOULD SPEND A LOT OF TIME WITH YOU. SHE WAS GORGEOUS.

I WAS IN THE MIDDLE OF THE ROAD TAKING PICTURES AND MY GUIDE PUSHED ME OUT OF THE ONCOMING LANE OF TRAFFIC, JUST IN THE NICK OF TIME. THEY DRIVE ON THE LEFT SIDE LIKE ENGLAND, HE SAVED MY LIFE. THE APPRENTICE NOW BEING ARCHITECT KAZUHIRO MURAKAM WITH HIS OWN PRACTICE. I HAD A LAWYER FRIEND THAT WAS KILLED IN ENGLAND DRIVING ON THE WRONG SIDE. LIFE IS JUST A SPLIT SECOND AWAY FROM DEATH. I HAVE BEEN FORTUNATE.

HARADA HAD A PROJECT NEAR MOUNT FUJI FOR EXPERIMENTAL HOUSING. PAGODA ROOFS ARE SUSPENDED FROM THE MAIN STRUCTURAL POLE TO ALLOW FOR EARTHQUAKES TO MOVE THE POLE WITHOUT BREAKING APART ROOFS. HARADA WAS DESIGNING WITH THIS PRINCIPLE INDIVIDUAL HOUSES, BUT I IMMEDIATELY THOUGHT THE SYSTEM COULD BE DEVELOPED AS A WHOLE HILLSIDE OF CONNECTED UNITS SUPPORTED ON POLES WITH TENSION MEMBERS TO THE SPACE FRAME. I BUILT A ROUGH MODEL. OF THE SCHEME. THE TRANSPORTATION WAS A MINI MODULAR CAPSULE UNIT THAT THEY WERE EXPERIMENTING WITH.

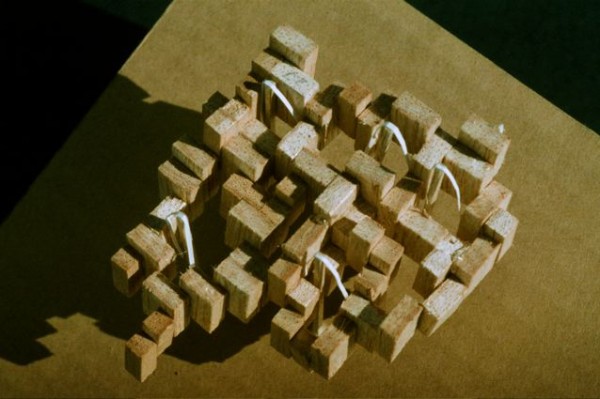

CONCEPTIONAL MODEL BUILT WHILE IN JAPAN, RANDOM SUPPORTS AS NEEDED. APPLICABLE TO FINAL SOLUTION

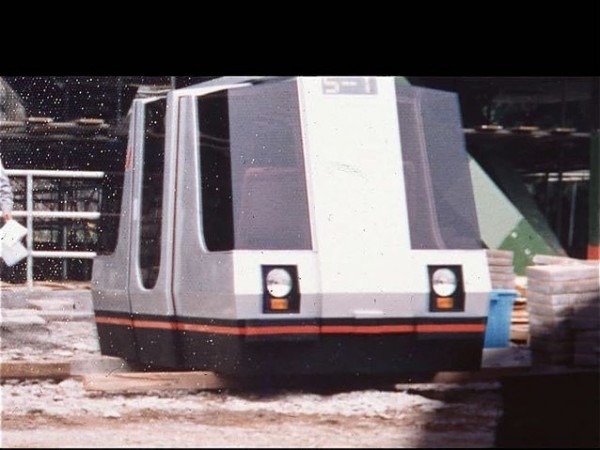

EXPERIMENTAL TRANSPORTATION ELECTRICAL MODULAR 1983

NEAR THE END OF MY VISIT, I BECAME ENTRANCED WITH DESIGNING SOME ROUGH ARCHITECTURAL SCHEME, I WAS SO ENGROSSED, THAT I WAS LATE TO GO TO SOME IMPORTANT GOVERNMENT MINISTERS OFFICE AND THE MEETING WAS CANCELED, TALK ABOUT ME BEING OUT OF TOUCH WITH WHAT WAS IMPORTANT. HARADA DID A LOT OF BOWING AND GIVING GREETINGS. I QUESTIONED HIM ABOUT BEING SO KIND. HIS ANSWER WAS THAT IT WAS JUST A CUSTOM, BECAUSE SOMETIMES HE DISLIKED THE PERSON. I RAN OUT OF TIME, AND HEADED HOME.

TYPICAL TATAMI MAT HISTORIC HOUSE, JAPAN

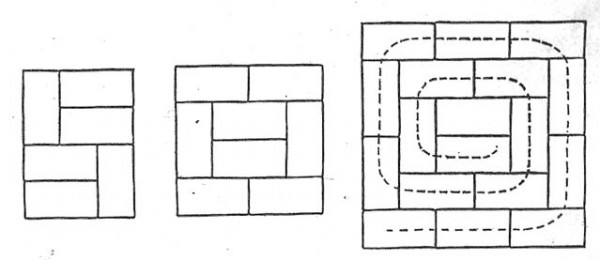

TATAMI MATS ARRANGEMENTS, 3 FEET BY 6 FEET

VIERENDEEL BOXED TRUSS FRAME INDEPENDENT OF COLUMNS

AFTER I GOT HOME I DEVELOPED THE STRUCTURAL SYSTEM WITH THE TATAMI MAT I HAD SEEN IN THE OLDER HISTORIC HOUSES IN JAPAN. I WAS IMPRESSED WITH THE CLEAN MODULAR LINES AND IN THE MATTER IN WHICH THEY DISTANCED THEMSELVES FROM ALL THE CLUTTER. I HAVING WORKED WITH GRIDS IN MY WOODIE GOODIE DAYS, THE TATAMI MATT WAS EASY TO DEAL WITH. I USED IT IN PLAN, SECTION AND ELEVATION.

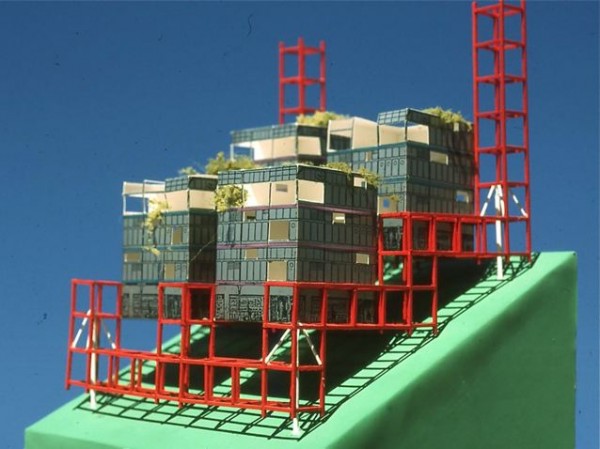

ROUGH MODEL, BIRDS EYE VIEW

ROUGH MODEL ELEVATION

CROSS SECTION OF HILL AND SYSTEM

EACH BLOCK HAD A COMMON STAIR AND ELEVATOR.

COMMERCIAL ON BOTTOM LEVEL.

HOUSING THREE LEVELS WITH ROOF DECKS ON FIFTH LEVEL.

PLANTING ON GRADE WOVEN INTO FRAME.

CONCENTRATING TRACKING COLLECTORS ON TOP OF SUPPORT COLUMNS.

SOLAR REFLECTING MIRRORS, SUN LIGHT TO STREETS, NORTH SLOPE SITE.

INCLINED ELEVATORS AND STAIRS ABOVE GRADE.

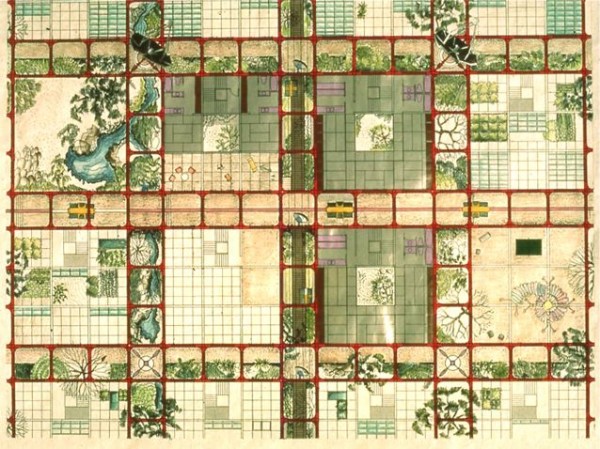

FLOOR PLAN

IN PLAN THERE WAS A CENTRAL ATRIUM IN EACH BLOCK THAT WAS TOPPED WITH A GLASS ROLL BACK TOP. THE ROOF DECK BEING AN INTENSE GARDEN.

A VARIETY OF FLOOR PLAN USES ARE SHOWN. A FULL BLOCK PARK IS IN THE UPPER LEFT. THE CONCEPT BEING A SYSTEM TO BE VARIED IN HUNDREDS OF WAYS.

THE STRUCTURAL TRUSS WITH A SUPPORT COLUMN EVERY OTHER BLOCK CONNECTING TO FRAME WITH TENSION SHOCK ABSORBER CABLES. IN THE OPEN FRAME WAS ALL THE COMMUNAL WALKWAYS, STAIRS, AND TRANSPORTATION. 12 FOOT WIDE STREETS WHEN NEEDED. BEING ON THE NORTH SIDE OF THE MOUNTAIN, SOLAR MIRRORS WERE USED TO AUGMENT THE LIGHT THROUGH THE FRAME. THE BUILDINGS THEMSELVES BEING SILVER REFLECTED LIGHT ALL AROUND. THE MINIATURE GARDEN THE JAPANESE RELATE TO WAS EMPHASIZED WITH FRAMED PLANTS IN SMALL SPACES. THE END RESULT WOULD HAVE PROBABLY BEEN A HUGE STEEL TRELLIS THAT THE PLANTS CONSUMED. JAPAN BEING A NORTHERN JUNGLE LIKE OREGON.

REDUNDANCY MIGHT BE QUESTIONED, BUT WHAT IS SHOWN IS A FEW BLOCKS. I ENVISIONED A MORE RANDOM PATTERN LIKE THE ORIGINAL STUDY MODEL WITH A VARIETY OF ARCHITECTURAL INFILL HOUSING BLOCKS. I COULD DESIGN TEN VARIATION IN A FEW HOURS, INCLUDING THE CURVE SCHEME. BUT THE CONCEPT WAS ONE OF OTHER ARCHITECTS DOING THEIR THING WITHIN THE FRAME.

MY ASSISTANT AT THE TIME WAS DON FUKUMOTO A SCI-ARC STUDENT TURNED HELPER. HIS FATHER HAD COME FROM JAPAN AND WAS DOING LAWN CARE AND LANDSCAPING IN NEWPORT BEACH CALIFORNIA. HE AND I BUILT A ROUGH MODEL AND XEROXED THE ELEVATIONS AND PLANS ON SILVER PAPER AND BUILT A ROUGH MODEL TO PRESENT TO MR. SHIZUO HARADA THAT WAS VISITING FROM JAPAN AND STAYING IN SAN FRANCISCO. I REMEMBER PRESENTING IT TO HIM ON THE SIDEWALK IN FRONT OF HIS SAN FRANCISCO HOTEL. HE TAKING A BUNCH OF PHOTOS. SOMEHOW IT NEVER GOT ITS SHOW IN COURT AND JUST DIED. BEING ALL GREEN IN THE EIGHTIES WAS NOT A GREAT TIME, REJECTION OF THE SIXTIES AND SEVENTIES REPLACED WITH CONSUMERISM OF THE EIGHTIES FANNED BY RONALD REAGAN, ” IF YOU HAVE SEEN ONE REDWOOD TREE YOU HAVE SEEN THEM ALL”

THE HOUSE WAS A FOUR STORY CUBE, THAT COULD BE DIVIDED UP IN DIFFERENT WAYS FOR MORE THAN ONE LIVING UNIT, WITH EXTENDED FAMILY LIVING. MY TAKE IS THE EXTENDED FAMILY IS CORRECT, BUT TALKING TO THE YOUTH THEY WANT TO ESCAPE THE FAMILY. INDEPENDENCE. THIS INDEPENDENCE HAS WRECKED HAVOC IN THE FAMILY . THE EXTENDED FAMILY COULD MAKE ADJUSTMENTS TO ACCOMMODATE THE INDEPENDENT SPIRIT. BY ALLOWING SEPARATED APARTMENTS WITHIN THE HOUSE AND STILL BE ALL CONNECTED TOGETHER. KIDS ARE THE LOSER, BECAUSE THE EXTENDED FAMILY GIVES RELIEF TO THE TWO PARENT SYSTEM , BY PROVIDING A LOT OF ADULTS THAT CAN SPEND TIME DOTTING OVER THE CHILDREN. WHERE AS THE ISOLATED TWO PARENT SYSTEM OF RAISING KIDS TAKES MAJOR ENERGY AND SKILL, AND OFTEN IS NOT ENOUGH VARIED PERSONAL ATTENTION FOR THE KIDS.

IN NICARAGUA LIKEWISE THE FAMILY IS THE CORE OF THE SOCIAL LIFE AND PROFESSIONAL LIFE. WHOLE FAMILIES WORKING AT THE SAME BUSINESS. THE FAMILY BEING A FORM OF TRUST IN A VERY DICY MORAL SYSTEM.

MR. HARADA TOOK ME TO AXIS MAGAZINE. THEY DID AN ISSUE ON ARCHITECTURAL HIGH TECH. NORMAN FOSTER WAS ON THE COVER , THE LATE JAN KAPLICKY OF FUTURE SYSTEMS, AND I ALL HAD EXTENSIVE MULTI COLOR PAGE SPREADS. THE BEST PUBLICITY THAT I HAD HAD AS OF THAT DATE , WITH THE CORRECT ARCHITECTURAL COLLEAGUES, FEATURING THE GREEN MACHINE, TURF TOWN, HONG HONG PEAK AND THE FUTURE STUDIES POSTER, I WAS THE DIRECTOR OF THE INSTITUTE FOR FUTURE STUDIES AT SCI-ARC AT THE TIME AND HAD DESIGNED A POSTER ASSISTED BY AHDE LAHTI.

I CAME BACK TO THE USA, AND THAT WAS THE END. IN 1990 JAPAN INVITED ME BACK AS KEY NOTE SPEAKER AT A GREEN CONFERENCE IN FUKUI, AND THE FIRST CLASS ROYAL TREATMENT WAS REPEATED.

THERE WAS AN INTEGRITY AND RESPECT IN JAPAN TOWARDS ME THAT WAS REFRESHING.

GLEN

INSTITUTE FOR FUTURE STUDIES, POSTER SCI-ARC 1983 DESIGNED BY GLEN SMALL, IMPUT FROM AHDE LAHTI
